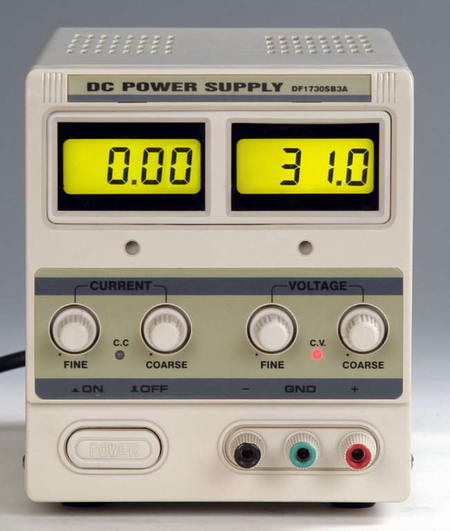

DF1730SB3A

    SINGLE 30V / 3A

 DF1730SB5A

       SINGLE 30V / 5A

 DF1760SL3A

      SINGLE 60V / 3A

    DF1760SL5A

   SINGLE 60V / 5A

¡¡

  Features

  - Voltage, Current Digital LED Display
      - Low Ripple Voltage
      - High Stability, High Voltage and Current

¡¡

      Specifications
¡¡

Model

DF1730SB 3A

DF1730SB 5A

DF1760SL 3A

DF1760SL 5A

Output

Output

CH 1

0 ~ 30V

0 ~ 30V

0 ~ 60V

0 ~ 60V

Voltage

CH 2

-

-

-

-

Output Current

0 ~ 3A

0 ~ 5A

0 ~ 3A

0 ~ 5A

Fixed

-

-

-

-

Constant Voltage Characteristics

Input Regulation

CV ¡Ü 1X10 £þ4
CC ¡Ü 2X10 £þ3
CV ¡Ü 2X10 £þ4
CC ¡Ü 5X10 £þ3

Load Regulation

CV ¡Ü 1X10 £þ4
CC ¡Ü 2X10 £þ3
CV ¡Ü 2X10 £þ4
CC ¡Ü 5X10 £þ3

Ripple & Noise

CV ¡Ü 1mV
CC ¡Ü 3mA
CV ¡Ü 3mV
CC ¡Ü 10mA

Dimensions, Weight

Dimensions

135 X 158 X 290mm

265 X 165 X 360mm

Weight

3 ~ 8kg

8 ~ 12kg
