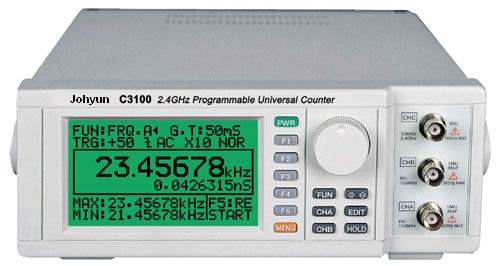

C3100 |
Features
- Record (MAX / MIN), Relative
(REF / ERR), Compare (GO - NO GO)
- Frequency Range : CHC : 2.4GHz (CHA, B : 120MHz)
- Frq. A, Frq. B, Frq. C, Time Interval, Totalize, Ratio A/B, Difference
Freq. (A-B),
- Duty Cycle and RPM
- Trend Plot
- Remote Control via RS232 or GPIB (Optional)
- Display : 128 by 64 Pixel Super Twisted LCD Display
|
|
CH A
CH B |
Frequency Range |
DC Coupled : 0 ~ 120MHz
|
|
AC Coupled : 10Hz ~ 120MHz
|
|
Sensitivity |
25mVrms (Sine Wave)
|
|
Coupling |
DC or AC
|
|
Impedance |
1M ohm less than 35pF
|
|
Attenuator |
x1, x10
|
|
Maximum Input Voltage |
250V (DC or AC Peak)
|
|
Trigger slope |
Positive or Negative
|
|
Resolution |
0.00001Hz (at Gate Time = 1sec, Input Freq = 200Hz)
|
|
CH C |
Frequency Range |
100MHz ~ 2.4GHz
|
|
Sensitivity |
25mVrms (Sine Wave)
|
|
Coupling |
AC
|
|
Maximum Input Voltage |
5V (DC or AC Peak)
|
|
Channel |
CH A, CH B, CH C
|
|
Measurement Function |
| FRQ.A, FRQ.B, FRQ.C, A↙B (Time Interval), |
| TOT.A (Totalize), Ratio A/B, A-B, DUTY, |
| A and RPM A |
|
|
Gate Time |
| 50ms, 100ms, 200ms, 300ms, 400ms, 500ms, |
| 600mS, 700mS, 800mS,900mS, |
| 1s, 2s, 3s, 4s, 5s, 6s, 7s, 8s, 9s, 10s |
|
|
|
|

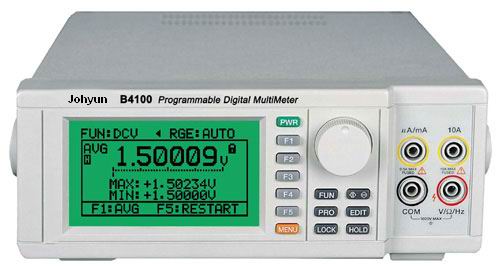

B4100
|
Features
- Record (MAX / MIN), Relative (REF / ERR), Compare (GO-NO GO)
- DCV, ACV, Ohm, Beep, Diode, Freq, DC 米A / mA, DCA,
AC 米A / mA, ACA
- Resolution : 5 1/2 Digits (200,000 Count)
- Accuracy : 0.001次, Error : 0.05%
- True RMS, AC
- Trend Plot
- Remote Control via RS232 or GPIB (Optional)
- Display : 128 by 64 Pixel Super Twisted LCD Display
|
Specifications
|
|
DC Voltage |
AC Voltage |
DC Current |
AC Current |
Resistance |
|
Range |
2V, 20V, 200V, 1000V
|
2V, 20V, 200V, 1000V
|
200米A, 200mA, 10A
|
200米A, 200mA, 10A
|
200, 2k, 20k, 200k, 2M次
|
|
Accuracy |
0.05% +3D
|
0.5% +5D
|
0.1% +5D
|
0.5% +5D
|
0.05% +2D
|
|
Overload Protection |
1000V
|
1000V
|
Fused
|
Fused
|
50V
|
|
Input Impedance |
10M次
|
10M次
|
|
|
|
|
Max. Burden |
|
|
≒ 200mV
|
≒ 200mV
|
|
|
Crest Factor |
|
3 : 1
|
|
3 : 1
|
|
|
|
|

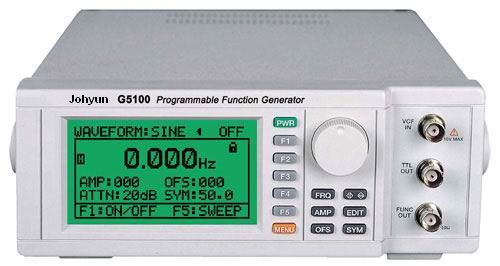

G5100 |
Features
- Waveform : 15MHz Sine / Square, 100KHz Triangle
/ Ramp Wave
- Mode : CW, BURST, SWEEP, TRIG
- Frequency Range : 1Hz ~ 15MHz
- Resolution : 4 Digits
- DC Offset : -7.5V ~ +7.5V
- Remote Control via RS232 or GPIB (Optional)
- Display : 128 by 64 Pixel Super Twisted LCD Display |
Specifications
|
Frequency |
Range |
1Hz ~ 15MHz
|
|
Resolution |
4 Digits
|
|
Accuracy |
㊣(Setting Value x 0.5% + 1 Digit)
|
|
Wave Form Characteristics |
|
Sine |
Frequency Range |
1Hz ~ 15MHz
|
|
Amplitude |
Max. 10Vpp (Impedance 50次)
|
|
Harmonic Distortion |
<1.5% (10Hz to 100Hz)
|
|
Triangle |
Frequency Range |
1Hz ~ 100kHz
|
|
Linearity |
Better than 1%
|
|
Square |
Frequency Range |
1Hz ~ 15MHz
|
|
Rise / Fall Time |
<35nS
|
|
Symmetry |
20% ~ 80%
|
|
Pulse |
Frequency Range |
1Hz ~ 15MHz
|
|
Rise / Fall Time |
<35nS
|
|
Duty Cycle |
100ns to 10s
|
|
Ramp |
Frequency Range |
1Hz ~ 100kHz
|
|
Linearity |
1% (1Hz ~ 100kHz)
|
|
Output Characteristics |
|
|
Waveforms |
Sine, Triangle, Square, Pulse, Ramp
|
|
Output Range |
Max.10Vpp (Impedance. 50次), Max.20Vpp (Impedance ﹢次)
|
|
Impedance |
50次 +5%
|
|
Attenuator |
0, 20dB
|
|
DC Offset |
-7.5 ~ + 7.5V (No Load)
|
|
Sweep Characteristics |
|
|
SWEEP Period |
9.95s ~ 0.05s
|
|
SWEEP Range |
1 : 1 to 10 : 1
|
|
External SWEEP |
To be Controlled by the VCF Input
|
|
VCF Input |
|
|
Input Voltage |
V DC, Maximum Sweep Occurs at 5V DC
|
|
Accuracy |
1%
|
|
Input Impedance |
Approximately 1k次
|
|
TTL Output |
|
|
Level (TTL) |
| Fixed Amplitude, < 0.4V: for a low "L", and g> |
| than 2.4V: for a High "H" |
|
|
Rise and Fall Time |
< 35ns
|
|
FUNC Output |
|
|
Level (TTL) |
Variable Amplitude (Max. 10Vpp, Impedance 50次)
|
|
|

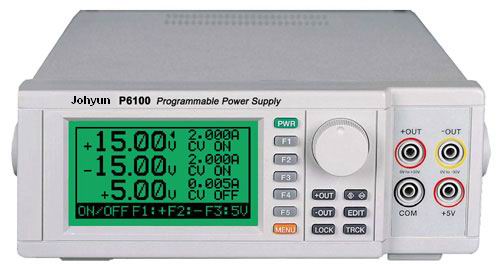

P6100 |
Features
- Triple Output
- DUAL Voltage, Ampere : DC+30V / 3A, DC-30V / 3A
- Fixed Voltage, Ampere : DC 5V / 2A.
- Protection : Overload Voltage, Ampere Protection (SMPS)
- CC, CV Set : AUTO Set
- AUTO Tracking
- Remote Control via RS232 or GPIB (Optional)
- Display : 128 by 64 Pixel Super Twisted LCD Display
|
|
Channel
|
3 Channel (Two Variable, One Fixed)
|
|
Output
|
Voltage
|
0 ~ +30V (Continuously Variable)
|
|
0 ~ -30V (Continuously Variable)
|
|
Fixed 5V
|
|
Current
|
Dual 0
㊣3A |
|
Fixed 2A
|
|
Resolution
|
Voltage
|
10mV
|
|
Current
|
1mA
|
|
Operating Mode
|
Constant Voltage (CV)
|
|
Constant Current (CC)
|
|
Ripple and Noise
|
< 50mVrms
|
|
Load Regulation
|
0.1% (at V = 15V, I = 1A)
|
|
Line Regulation
|
< 1mV / V
|
|
Programming Accuracy
|
0.5% of Value 3 Digits
|
|
Read Back Accuracy
|
0.2% of Value 3 Digits
|
|
| |
|
