Distance Measuring Tool |
JT-60 |
- 99.5% Accuracy |
| - 60m Range |
|
|
|
Accurate to 99.5% at distances from 0.6m to 60m (max. 75m) |
2 Ways to Measure : Receive alone to 15m (Max. 18m) |
|
Range without Target |
Min : 1ft 11ins (0.6m) |
Max : 59ft (18m) |
Typical : 1ft 11 ins to 49ft (0.6 ~ 15m) |
Actual : Depend on environmental condition |
Range with Target |
Min : 3ft 3 ins (1m) |
Max : 246ft (75m) |
Typical : 3ft 3ins to 197ft (1 ~ 60m) |
Actual : Depend on environmental condition |
Accuracy |
Single Unit Mode : 99.5% (±1/ 4 in or ±1m) |
Dual Unit Mode : 99.5% (±1/ 2 in or ±1m) |
Accuracies are subject to below conditions ; |
Temperature |
32℉ ~ 86℉ (0 ~ 30℃) |
Relative Humidity |
30% ~ 70% |
Altitude |
-328ft ~ + 328ft (-0.1 ~ + 0.1km) |
Wind Speed |
Still Air |
|
|
| Mini IR Thermometer |
| JT-208A |
| - Laser Point |
| - upto 500℃ |
| |
|
|
Measuring Range |
-30℃ ~ 500℃ |
Display Range |
-60℃ ~ 1000℃ |
Field of View |
D : S + 8 : 1 |
Spectral Response |
8 ~ 14μm |
Resolution |
0.1℃ / ℉ |
Emmisivity |
ε0.1 ~ 1.0 (Adjustable) |
Auto Off |
60 sec |
Response Time |
T90 = 0.5 sec |
Accuracy |
2% of reading ±1℃ |
Singhting Method |
Non-Coaxial Laser Spot |
Main Functions |
Max, Min, Avg, Dif Mode |
SCAN, HI / LOW Alarm |
Backlight, Probe Input |
Power |
2 X 1.5V AA (Alkaline) |
Battery Life |
>300 hrs |
Operating Temp. |
-10℃ ~ 50℃ |
Operating Humidity |
35% ~ 85% RH Non-Condensing |
Storage Temp. |
-27℃ ~ 70℃ |
|
|

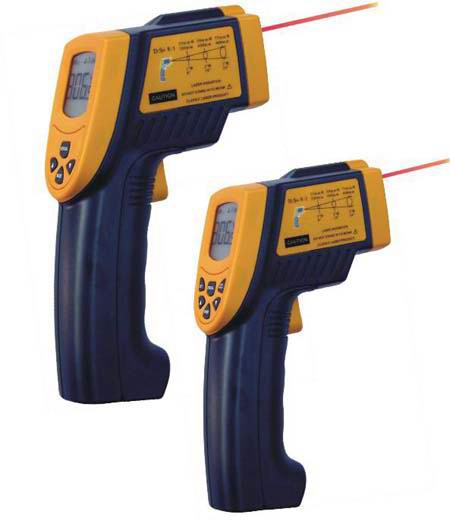

| Infrared Thermometer |
| JT-331C / JT-332C |
| - Laser Point |
| - upto 330℃ |
| |
|
|
Laser Point ON / OFF Function with Backlight |
Auto Power Off, Low Battery Indication , Auto Data Hold |
|
Temperature Range |
-18℃ ~ 330℃ |
0℉ ~ 626℉ (℃ / ℉ Selectable) |
Accuracy |
±2℃ or ±2% |
Distance to Spot Size |
8 : 1 |
Max, Min, Dif, Ave |
JT-332C only |
DC 9V Battery |
Not Included |
|
|
| Infrared Thermometer |
| JT-510C / JT-520C |
| - Laser Point |
| - upto 500℃ |
| |
|
|
Laser Point ON / OFF Function with Backlight |
Auto Power Off, Low Battery Indication, Auto Data Hold |
|
Temperature Range |
-18℃ ~ 500℃ |
0℉ ~ 932℉ (℃ / ℉ Selectable) |
Accuracy |
±2℃ or ±2% |
Distance to Spot Size |
8 : 1 |
Max, Min, Dif, Ave |
JT-520C only |
DC 9V Battery |
Not Included |
|
|
| Mini IR Thermometer |
| JT-209 |
| - Laser Point |
| - upto 500℃ |
| |
|
|
Measuring Range |
-30℃ ~ 500℃ |
Display Range |
-60℃ ~ 1000℃ |
Field of View |
D : S + 8 : 1 |
Spectral Response |
8 ~ 14μm |
Resolution |
0.1℃ / ℉ |
Emmisivity |
ε0.1 ~ 1.0 (Adjustable) |
Auto Off |
60 sec |
Response Time |
T90 = 0.5 sec |
Accuracy |
2% of reading ±1℃ |
Singhting Method |
Non-Coaxial Laser Spot |
Main Functions |
Max, Min, Avg, Dif Mode |
SCAN, HI / LOW |
Backlight, Probe Input |
Power |
2 X 1.5V AA (Alkaline) |
Battery Life |
>300 hrs |
Operating Temp. |
-10 ~ 50℃ |
Operating Humidity |
35% ~ 85% RH Non-Condensing |
Storage Temp |
-27℃ ~ 70℃ |
|
|
| Infrared Thermometer |
| JT-330C |
| - Laser Point |
| - upto 330℃ |
| |
|
|
Laser Sighted for Accurate Target Aiming |
Laser Point ON / OFF Function |
|
Temperature Range |
-18℃ ~ 330℃ |
0℉ ~ 626℉ |
Accuracy |
up to ±2% |
Distance to Spot Size |
6 : 1 |
DC 9V Battery |
Not Included |
|
|
| Infrared Thermometer |
| JT-500C |
| - Laser Point |
| - upto 500℃ |
| |
|
|
Laser Sighted for Accurate Target Aiming |
Laser Point ON / OFF Function |
|
Temp. Range |
-18℃ to 500℃ |
0℉ to 932℉ |
Accuracy |
up to ±2% |
Distance to Spot Size |
6 : 1 |
DC 9V Battery |
Not Included |
|
|
| Lux Meter |
| JT-813 |
| - 20,000 Lux |
| |
|
|
Measuring Range |
20,000 LUX |
Accuracy |
Max. ±4% |
Repeatability |
±2% |
Sampling Rate |
2 times/sec |
Battery |
DC 9V Battery Operated (not Included) |
|
|
| Digital Stud / |
| Metal AC Wire Detector |
| JT-906 |
| |
|
|
Simple Push Button Indication |
Power on LCD Symbol Indication |
Locate Stud with Audio and LCD Moving Segment Indication |
Normal Scan and Deep Scan Button Push Selection |
Different Audio Output and LDC Symbols Indication |
AC Wire LCD Symbol Indication |
|
|
| Electronic Anemometer |
| JTA-4201 |
| |
|
|
Measurement |
Range |
Resolution |
m/s |
0.4 ~ 30.0m/s |
0.1m/s |
|
30 ~ 40.0m/s |
|
km/h |
1.4 ~ 108.0km/h |
0.1km/h |
ft/min |
80 ~ 5910ft /min |
10ft /min |
knots |
0.8 ~ 58.3knots |
0.1knots |
Accuracy |
±(3%+3d ) |
|
|
| Mini Thermo Anemometer |
| JT-816 |
| |
|
|
| Wind Speed Measure in mph, ft/min, Km/h, m/s or Knots |
| Wind Chill Display |
| Temperature Display in Celsius or Fahrenheit |
| LCD Backlight |
| Auto Power Off |
| Neck Band |
|
|
| Sound Level Meter |
| JTS-1357 |
| |
|
|
Functions |
Range |
Hz |
31.5Hz ~ 8kHz |
dB |
A : 30dB ~ 130dB |
C : 35dB ~ 130dB |
|
|
