| Frequency Measuring Range |
300MHz ~ 3.8GHz |
| RF Field Strength Measuring Range |
-50dBm ~ 0dBm (Option -20dBm) |
| Response Time |
50m sec Max. |
| Sensitivity |
less than 5mV |
| Resolution |
10kHz for Digital Signal |
| Maximum Input |
15dBm |
| LCD |
7 Digits with Backlight |
| Battery |
Internal 4 X AA, 600mAh NiCd Pack |
| Power |
9V DC, 300mA |
| Dimension / Weight |
80(W) X 30(D) X 120(H) mm, 310g |

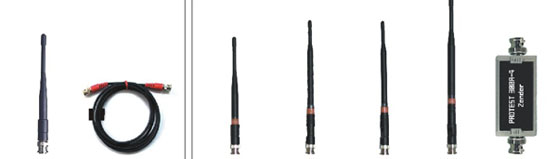

| Standard Accessories |
300MHz ~ 3800MHz (A1) Antenna |
| Wire Filter, BNC Cable |
| Optional Accessories |
300MHz ~ 500MHz (A2) Antenna |
| 750MHz ~ 900MHz (A3) Antenna |
| 1.7GHz ~ 1.9GHz (A4) Antenna |
| 2.0GHz ~ 2.5GHz (A5) Antenna |
| Zender |
