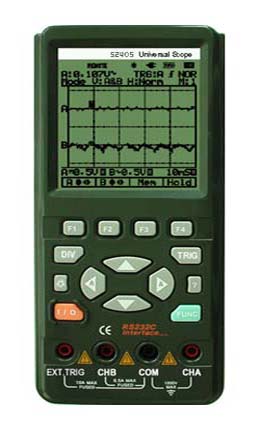

S2405
5MHz Handheld DSO
﹛ |
﹛
﹛

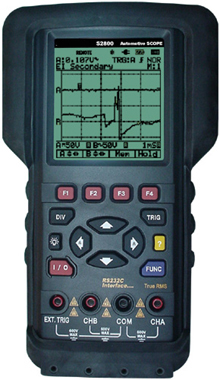

S2800
1MHz Automotive DSO
﹛ |
﹛
Features
-Dual Channel, Auto Calibration
-DC to 5MHz (S2405), to 1MHz (S2800) Bandwidth
-Sampling : Single CH : 50Ms/s, Dual CH : 25Ms/s
-Automatic Triggering, Roll and Single Shot Mode
-Excellent Internal Noise Reduction
-Real Time Update and Auto Ranging
-16 (S2405) / 45 Shot (S2800) Wave / Setup Memory
-Built-in Auto Ranging True-RMS Digital Multimeter
-Data Hold and Run Mode
-Extra Bright Back Light Display
-Low Battery Indication
-RS-232 Interface
-Display Type : Super-Twist 132 x 128 Pixels ﹛ |
|
| eSpecifications
﹛ |
Oscilloscope Function |
Horizontal |
Sample Rate |
| 25 MSPS (Dual CH Mode) |
| 50 MSPS (Single CH Mode) |
|
Record Length |
| 512 in Single Shot and Glitch Capture Mode |
| 256 in All Other Modes |
|
Sample / Division |
25 |
Update Rate |
Real Time |
Modes |
Single Shot, Roll, Normal |
Accuracy |
0.01% |
Sweep Rate |
1us to 5s in 1, 2, 5 Sequence |
Vertical |
Bandwidth |
DC ~ 5MHz (S2405) / 1MHz (S2800) |
Resolution |
8 Bit |
Channels |
Dual |
Coupling |
AC, DC |
Input Impedance |
1M次 |
Accuracy |
3% |
Max. Input Volts |
DC or AC 600Vp-p |
Volt / Division |
50mV ~ 500V (S2405), 0.5V ~ 500V (S2800) in 1, 2, 5 Sequence |
Triggering |
Type |
Internal, External |
Coupling |
AC, DC |
Slope |
Rising or Falling Edge |
Internal Trigger Sensitivity |
2 / 20 Division |
Other |
Wave Form Memory |
16 Shot (S2405), 8 Shot (S2800) |
REF Wave For Memory |
45 Shot (S2800 Only) |
| ﹛ |
Digital Multimeter Function |
DC V |
Range |
Resolution |
Accuracy |
Impedance |
5V |
0.001V |
㊣(0.3% +3) |
1M次 |
50V |
0.01V |
500V |
0.1V |
㊣(0.5% +5) |
1000V |
1V |
AC V |
Range |
Resolution |
Accuracy |
Impedance |
50Hz ~ 450Hz |
0.45kHz ~ 5kHz |
5kHz ~ 200kHz |
3V |
0.001V |
㊣(0.75% +5) |
㊣(2% +5) |
㊣(2.5% +5) |
1M次 |
30V |
0.01V |
300V |
0.1V |
750V |
1V |
N/A |
OHM |
Range |
Resolution |
Accuracy |
Over Load Protection |
5k次 |
0.001k次 |
㊣(0.5% +5) |
600V DC or AC Peak |
50k次 |
0.01k次 |
500k次 |
0.1k次 |
5M次 |
0.001M次 |
㊣(0.75% +10) |
FREQUENCY (S2405, FULL AUTO RANGE) |
Range |
Resolution |
Accuracy |
Over Load Protection |
100Hz |
0.01Hz |
㊣(0.05% +5) |
600V DC or AC Peak |
1kHz |
0.0001kHz |
10kHz |
0.001kHz |
100kHz |
0.01kHz |
1MHz |
0.0001MHz |
2 ~ 1MHz |
S2800 Only |
Continuity Test |
Test Volt |
Threshold |
Over Load Protection |
1.7V |
100 Digits |
600V DC or AC Peak |
RPM |
Function |
Range |
Resolution |
Accuracy |
RPM |
240 ~ 60,000 |
1RPM |
㊣(0.05% +5) |
% Duty |
25% ~ 75% |
PulseSWidth |
2us ~ 500ms (30 RPM to 19,000 RPM, Pulse Width > 2us) |
Dwell (S2800) |
0.3∼ ~ 352.8∼ |
General |
Power Requirement |
Ni-MH Battery 4.8V (1.2V x 4 Cel) |
Dimension |
90(W) x 195(H) x 40(D) mm |
Weight |
Approx. 460g |
Standard Accessories |
Test Leads, AC Adaptor, RS232 Cable and S/W, Carrying Case (S2800) |
Optional Accessories |
Holster, Inductive Pick Up (S2800), Capacitance Pick Up (S2800) |
|
|
|
