JOHYUN INTERNATIONAL CO.,LTD.

　

　

　

　

　

　

TR260

Functions	Range	Accuracy
DC V	2.5V ~ 1000V	±3% f.s.
AC V	10V ~ 1000V	±4% f.s.
DC A	2.5A ~ 10A	±3% f.s.
Resistance	0 ~ 20MΩ	±3% of arc.
TR Check	PNP / NPN
dB	-10dB ~ +62dB
Dimension	150 (L) X 102 (W) X 45 (H) mm
Weight	Approx. 350g (Incl. Battery)

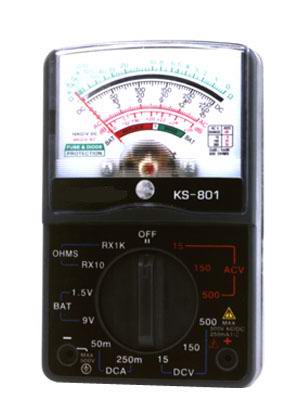

KS-801

Functions	Range	Accuracy
DC V	15V ~ 500V	±5% f.s.
AC V	15V ~ 500V	±5% f.s.
DC A	50mA ~ 250mA	±5% f.s.
Resistance	X10 / X1kΩ	±5% of arc.
Battery Check	9V / 1.5V
dB	-20dB ~ +26dB
Dimension	110 (L) X 70 (W) X 38 (H) mm
Weight	Approx. 130g (Incl. Battery)

KS-802

Functions	Range	Accuracy
DC V	2.5V ~ 1000V	±4% f.s.
AC V	10V ~ 1000V	±5% f.s.
DC A	5mA ~ 10A	±4% f.s.
Resistance	X1 / X10 / X1kΩ	±4%of arc.
hFE	0 ~ 1000
Battery Check	9V / 1.5V
dB	-8dB ~ +22dB
Dimension	150 (L) X 95 (W) X 40 (H) mm
Weight	Approx. 240g (Incl. Battery)

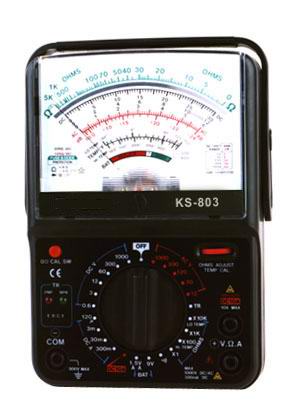

KS-803

Functions	Range	Accuracy
DC V	0.6V ~ 1000V	±3% f.s.
AC V	12V ~ 1000V	±4% f.s.
DC A	120uA ~ 10A	±3% f.s.
Resistance	X1 / X100 / X1k / X10kΩ	±3% of arc.
Temperature	-20℃ ~ 150℃
Temperature	-0℉ ~ 300℉
Battery Check	9V / 1.5V
dB	-10dB ~ +24dB
Dimension	180 (L) X 130 (W) X 50 (H) mm
Weight	Approx. 420g (Incl. Battery)
