DATA LOGGING
50,000 COUNTS
ACCURACY 0.05% |

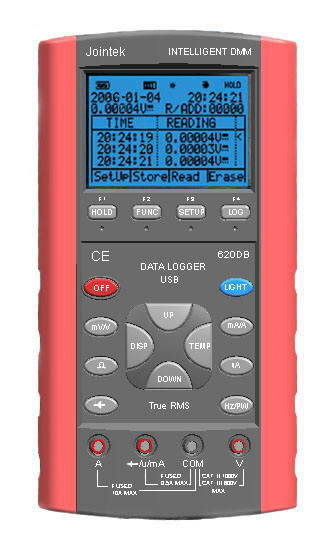

| Click Pictures for Larger View |
| |
|
DATA LOGGING : 18,000 POINTS |
|
USB INTERFACE |
|
BASIC ACCURACY : 0.05% DC V |
|
50,000 COUNTS |
|
TRUE RMS |
|
AUTO CALIBRATION |
|
TREND PLOT |
|
REAL TIME CLOCK |
|
10 MHz FREQUENCY COUNTER |
|
RECORD, RELATIVE, COMPARE, PERIOD |
|
| |
|
Electrical Specifications |
| ¡¡ |
DC mV |
Range |
Resolution |
Accuracy |
Impedance |
Max. Input |
| 500 mV |
0.01mV |
¡À(0.05%+5d) |
10MΩ |
1000VDC or 750VAC rms |
| DC V |
Range |
Resolution |
Accuracy |
Impedance |
Max. Input |
| 5V |
0.0001V |
¡À(0.05%+5d) |
10MΩ |
1000VDC or 750VAC rms |
| 50V |
0.001V |
| 500V |
0.01V |
| 1000V |
0.1V |
| AC V |
Range |
Resolution |
Accuracy |
Impedance |
Max. Input |
| 45 ~ 450Hz |
450 ~ 10kHz |
| 5V |
0.0001V |
¡À(0.5%+20d) |
¡À(2%+20d) |
10MΩ |
1000VDC or 750VAC rms |
| 50V |
0.001V |
| 500V |
0.01V |
| 1000V |
0.1V |
| AC+DC V |
Range |
Resolution |
Accuracy |
Impedance |
Max. Input |
| 45 ~ 450Hz |
450 ~ 5kHz |
| 1V |
0.00001V |
¡À(2%+50d) |
¡À(2.5%+50d) |
10MΩ |
1000VDC or 750VAC rms |
| 10V |
0.0001V |
| 100V |
0.001V |
| 1000V |
0.01V |
| Resistance |
Range |
Resolution |
Accuracy |
Protection |
| 500Ω |
0.01Ω |
¡À(0.2%+5d) |
1000VDC or 750VAC rms |
| 5kΩ |
0.0001kΩ |
| 50kΩ |
0.001kΩ |
| 500kΩ |
0.01kΩ |
| 5MΩ |
0.0001MΩ |
¡À(1%+10d) |
| 20MΩ |
0.01MΩ |
| Continuity |
Range |
Resolution |
Threshold |
Protection |
| 5kΩ |
0.0001kΩ |
Less than 100 ohm |
. |
| Diode |
Range |
Resolution |
Max. Test Current |
Open circuit voltage |
Protection |
| 3V |
0.001V |
Approx. 2.5mA |
2V |
600VDC or |
| AC Peak |
| Frequency |
Range |
Resolution |
Accuracy |
Protection |
| 1000Hz |
0.001Hz |
¡À(0.05%+2d) |
¡À250V |
| 10kHz |
0. 0001Hz |
| 100kHz |
0.001kHz |
| 1MHz |
0.00001MHz |
| 10MHz |
0.0001MHz |
Unspecified |
| Period |
Range |
Resolution |
Accuracy |
Protection |
| 1uS |
0.001uS |
¡À(0.05%+2d) |
¡À250V |
| 10uS |
0.01uS |
| 100uS |
0.1uS |
| 1mS |
0.001mS |
| 10mS |
0.01mS |
| 100mS |
0.1mS |
| 1S |
0.001S |
| Temperature |
Range |
Resolution |
Accuracy |
Protection |
| 1200¡ãC |
1¡ãC |
¡À(5%+3d) |
600VDC or AC Peak |
| 2192¡ãF |
1¡ãF |
¡ãF="32" + (9/5 x ¡ãC) |
| Data
Logger |
18,000 Points |
| DC |
. |
Range |
Resolution |
Accuracy |
Max. Burden |
Protection |
| mA |
50mA |
0.001mA |
¡À(0.5%+5d) |
500mV |
0.5A / 600V |
| A |
10A |
0.001A |
¡À(0.7%+5d) |
10A
/ 600V |
| AC |
. |
Range |
Resolution |
Accuracy |
Max. Burden |
Protection |
| mA |
50mA |
0.001mA |
¡À(0.5%+5d) |
500mV |
0.5A / 600V |
| A |
10A |
0.001A |
10A / 600V |
| AC+DC |
. |
Range |
Resolution |
Accuracy |
Max. Burden |
Protection |
| mA |
100mA |
0.001mA |
¡À(1.5%+50d) |
400mV |
0.5A / 600V |
| A |
10A |
0.0001A |
10A / 600V |
| Power Requirement |
3.7V Li-Ion Rechargeable Battery |
| Dimensions / Weight |
200 x 105 x 34 mm |
| Standard Accessories |
Manual, Test Leads, Battery,
Carrying Case, Holster |
| Optional Accessories |
Temperature
Probe & Adaptor , Software, USB Cable |
|
| |
|
SPECIFICATIONS AND DESIGN ARE SUBJECT TO CHANGE WITHOUT NOTICE. |
